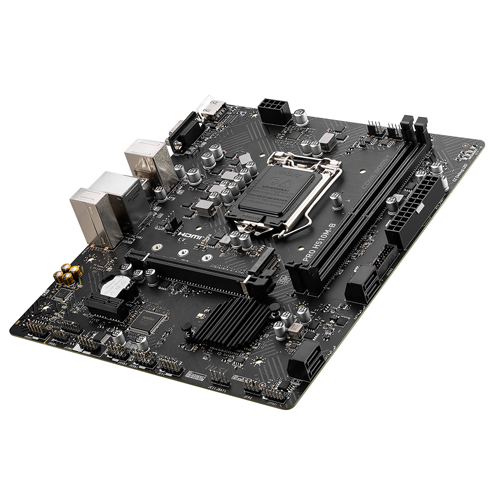

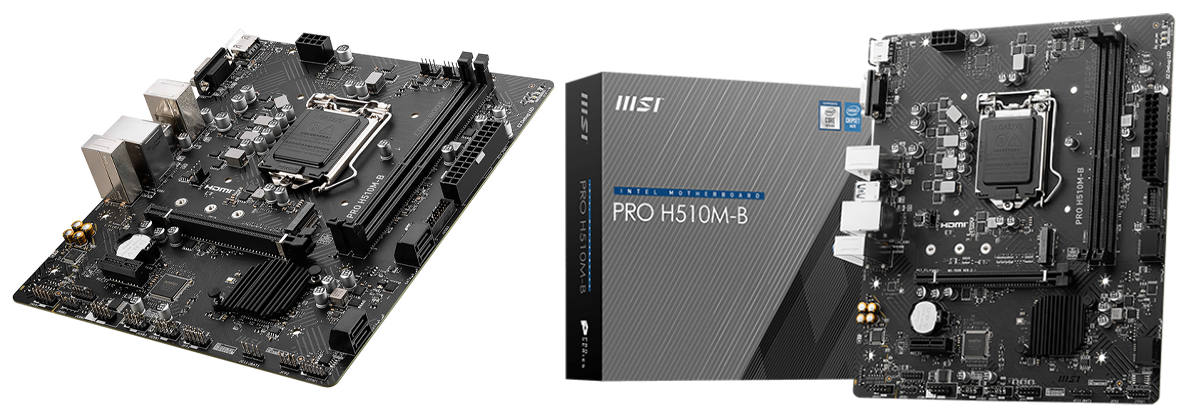

MSI PRO H510M-B Motherboard

Name: MSI PRO H510M-B Motherboard
Brand: MSI
SKU: 17047
Price: 32500 LKR
Availability: OutOfStock

Availability:

Out of stock

Add to wishlist

‎Intel® | H510-B | 1200 SOCKET | Intel® Core™ 11th & 10th Gen

රු32,500 ~~රු45,000~~

Out of Stock

MSI PRO H510M-B Motherboard

The MSI PRO H510M-B is a feature-packed motherboard designed to deliver a reliable and efficient computing experience. It is part of MSI’s PRO Series, which is known for offering
stability and performance for professional and business-oriented users. This micro-ATX motherboard is built on the Intel H510 chipset,
making it compatible with the latest 10th and 11th generation Intel Core processors.

With its sleek and modern design, the PRO H510M-B motherboard offers a solid foundation for a variety of systems, ranging from small office setups to home
entertainment centers. It supports up to 64GB of DDR4 memory across two DIMM slots,
allowing for smooth multitasking and efficient data processing.

The PRO H510M-B features an array of expansion slots to accommodate various components and peripherals. It includes one PCIe 3.0 x16 slot, perfect for
installing a dedicated graphics card, and two PCIe 3.0 x1 slots for adding additional expansion cards such as network adapters or sound cards.
This flexibility enables users to customize their systems to meet their specific needs.

Categories: Computer Components, Motherboard

Brand	MSI

CHIPSET
INTEL H470

CPU SUPPORT
Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket

MEMORY
2x DDR4, Maximum Memory Capacity 64GB
Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

ONBOARD GRAPHICS
1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 1920×1200 60Hz

EXPANSION SLOT
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)

LAN
Realtek® 8111H Gigabit LAN

AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio

INTERNAL
I/O 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

LED FEATURE
4x EZ Debug LED

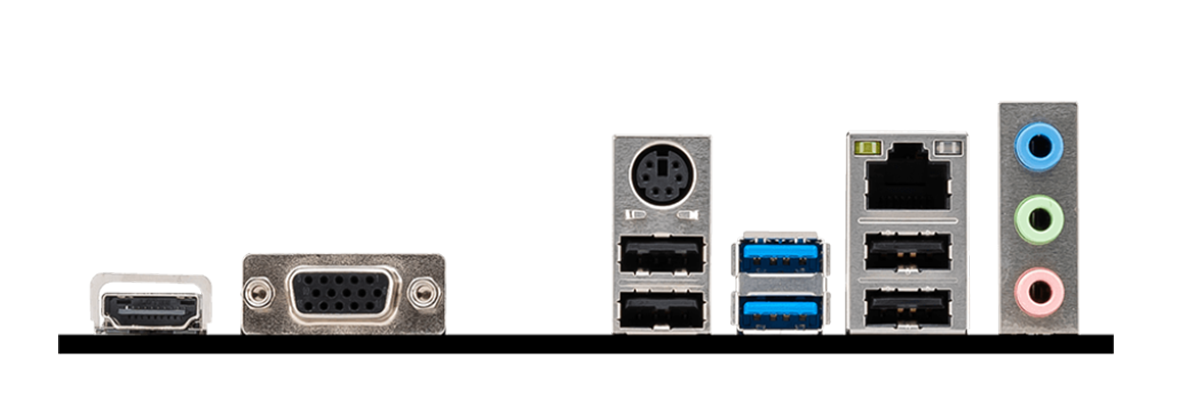

BACK PANEL PORTS
HDMI™
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio Connectors
USB 2.0
USB 2.0
